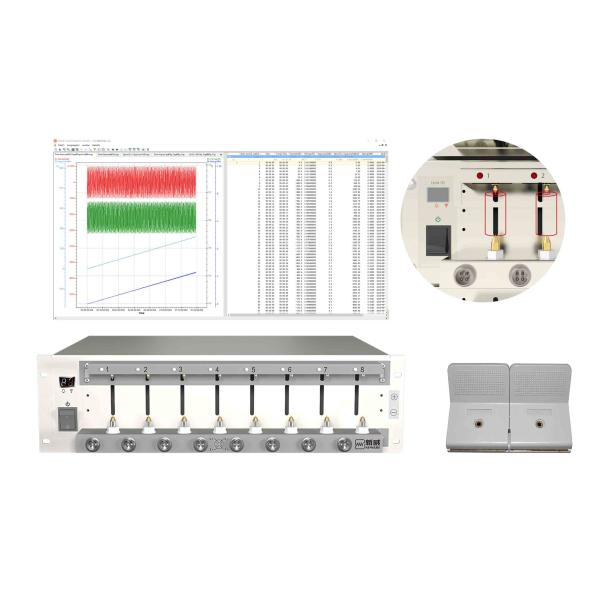

dQ/dV GITT High C Rate Battery Testing System

Brand Name : Neware

Model Number : CT-4008T-5V6A-S1

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : USD negotiation per Unit

Payment Terms : T/T

Supply Ability : 100 Units Per Month

Delivery Time : 8 working days

Packaging Details : Carton box , 530 - 360 - 230mm

Discharge : 2.0V - 5V

current range1 : 5mA - 1A

current range2 : 1A - 6A

current range3 : 6A - 12A

Charge : 25mV - 5V

End Conditon : Voltage , Current , Relative Time , Capacity , -deltaV

Contact Now

High C-Rate Battery Cycler Tester dQ/dV GITT Battery Testing System

This product is a 5V low - current system battery detection system , supports TWS headset battery and other 3C cell test use , supports 3 measurement ranges , and the test accuracy can reach five ten thousandths .


The overall performance of the equipment is superior and it satisfies a variety of test functions , including DCIR test , pulse simulation test , rate charge and discharge test , cycle life test , etc .

And is equipped with dQ/dV differential capacity curve function.

The use of this function can reduce manual calculations . Save time for personnel data investigation.


Because of its simple structure , modular design, and features such as high response , high precision , and high sampling rate , this series of products is far ahead in the sales of 3C testers .

Channel Features Constant Current Source and Constant Voltage Source with Independent pairs of Closed - loop Structure
Channel Control Mode Independent Control
Voltage Per Channel Voltage Range 1.5V - 5V
Discharge Min Voltage 1.5V
Accuracy 0.05 percent of FS
Stability 0.05 percent of FS
Current Per Channel Current Range Range1 , 0.5mA - 0.1A Range2 , 0.1A - 3A Range3 , 3A - 6A
Per Channel Current Range Range1 , 5mA - 1A Range2 , 1A - 6A Range3 , 6A - 12A
Accuracy 0.05 percent of FS
Stability 0.05 percent of FS

dQ/dV GITT High C Rate Battery Testing System
